Pillar Mounted Jib Crane

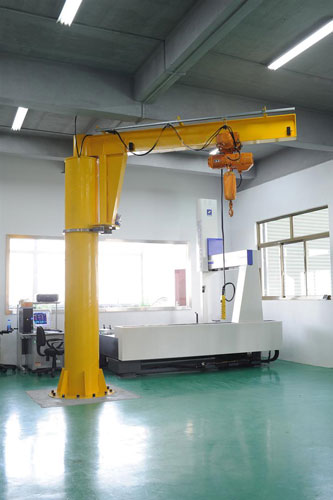

The pillar mounted jib crane is composed of column equipment, reversing equipment, jib equipment and electric chain hoist. It mainly includes upper column, lower column, main beam, main beam tie rod, lifting mechanism (electric chain hoist), reverse chain hoist, etc. The lower end of the column jib crane is fixed on the concrete foundation, and the swing arm can be reversed according to users' needs. Reverse rotation is divided into manual reversal and electric reversal.

Generally, the pillar mounted jib crane is equipped with a highly reliable electric chain hoist, which is especially suitable for frequent and intensive lifting operations over short distances. The electric chain hoist has the functions of lifting and running back and forth on the cross beam, and the slewing arm beam can be rotated by the reducer on the slewing device.


What are the advantages of pillar mounted jib cranes?

First of all, pillar mounted jib crane are specially made for modern production and manufacturing. They are highly reliable and have great advantages in short-distance production. Even if people operate them frequently, they will not be damaged easily. .

Secondly, pillar mounted jib crane brings great convenience to people, improves work efficiency, greatly reduces work pressure, and at the same time plays an energy-saving and environmentally friendly role.

The pillar mounted jib crane is also more flexible and convenient to use. Even if a fault occurs, it is easier for people to repair it. And because of its structural performance advantages, the equipment will not occupy too much land area.

The pillar mounted jib crane is suitable for short-distance, frequent, and dense lifting work. It has the characteristics of high efficiency, energy saving, labor saving, small footprint, and easy operation and maintenance. The electric chain hoist has the functions of lifting and reciprocating on the beam. The slewing arm beam of the pillar jib crane can be driven by the reducer on the reversing device to rotate the rollers. The electrical control box is installed on the chain hoist.

The column jib crane can be widely used in the loading and unloading of production lines, installation lines and machine tools in factories, mines and workshops, as well as the lifting of heavy objects in warehouses, docks and other places.

What are operation methods of pillar jib cranes?

The operation of pillar jib cranes is realized by manual operation of the switch button. The switch has eight buttons, which respectively control fast rise, fast fall, slow rise, slow fall, left and right rotation, and horizontal forward and backward walking of the hoist trolley.

1. During operation, do not press the speed button and the forward and reverse button of the same motor at the same time.

2. When the machine is operating, no one is allowed to stand under the lifting arm.

3. It is forbidden to drag heavy objects.

4. Overload work is prohibited.

If you have any inquiry about pillar mounted jib cranes, please feel free to contact us.
