2 Ton Double Speed Electric Wire Rope Hoist for Sale to New Zealand

1 set 2 ton Double Speed Electric Wire Rope Hoist with electric trolley for New Zealand customer. The 2 ton double speed electric wire rope hoists is customized according to our customer’s needs. Because our New Zealand customer wants to have two speed on hoist traveling, so our engineer design this electric hoist with adding a frequency converter. Check the 2 ton double speed electric wire rope hoist case to learn more hoist knowledge.

2 Ton Double Speed Electric Wire Rope Hoist

2 Ton Double Speed Electric Wire Rope Hoist for New Zealand Customer

2 Ton Double Speed Electric Wire Rope Hoist Specification

Lifting Capacity: 2 Ton

Lifting Height: 10m

Voltage: 400V50HZ3Phase

2 ton Double Speed Electric Wire Rope Hoist Production and Packaging

After 15 days production, this customized 2 ton double speed electric wire rope hoist with frequency converter was finished.

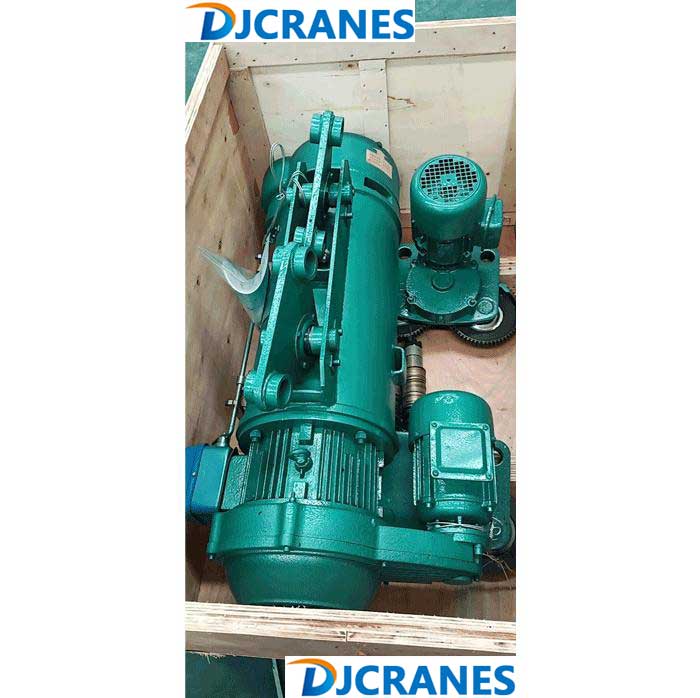

2 Ton Double Speed Electric Wire Rope Hoist Packaging

Variable Frequency Double Speed Wire Rope Electric Hoist Design Principle

The frequency conversion electric wire rope hoist uses the frequency converter to change the power frequency, and the lifting speed is set between 1/10 of the rated speed and the rated speed to control the motor speed to achieve a double-speed lifting effect. It is suitable for installing precision molds. The use environment with vibration can effectively reduce the impact force when starting and stopping, and the operation is stable. It can also be equipped with a running car for jog operation. The variable frequency electric hoist generally has 1t-10t.

2 Ton Double Speed Electric Wire Rope Hoist Delivery

When the 2 ton double speed electric wire rope hoist finished production and packaging, it will be delivery to Qingdao Port.

2 Ton Double Speed Electric Wire Rope Hoist Delivery

CD/MD Electric Wire Rope Hoist Difference

CD/MD electric hoist is a kind of wire rope electric hoist, and it is also a common wire rope electric hoist. They are basically similar in construction. The difference between MD type electric hoist and CD type electric hoist is that MD type electric hoist is a two-speed electric hoist.

The normal lifting speed of CD type electric hoist is normal speed, which can meet the general requirements of use. Compared with the normal speed of CD, the MD type electric hoist has a slower speed. When working at a slow speed, it can meet the precision operation requirements of clean and dense loading and unloading, sand box mold clamping, and machine tool maintenance. Therefore, the MD type electric hoist is more widely used than the CD type electric hoist.

MD type electric hoist has two motors, one more hoisting motor than CD type electric hoist. This also contributed to the MD type electric hoist with two lifting speeds. As shown in the figure below: on the left is the MD type electric hoist, and the red circle marked part is the extra hoisting motor.

CD/MD Electric Wire Rope Hoist Difference

Dejun Crane can provide customers different ton,different types and different voltage electric wire rope hoist according to customers' needs. If you have need about 2 ton double speed electric wire rope hoist or other ton electric wire rope hoists, please Contact Us freely.
