A Frame Gantry Crane Guide

In modern industrial production and material handling, selecting the right lifting equipment often involves striking a balance between performance, cost, and flexibility. A frame gantry crane (also known as a mobile gantry or light-duty gantry crane) is precisely such a "compact yet effective" lifting solution. With its distinctive structural design and versatile application characteristics, it has become an ideal choice for numerous small to medium-sized workshops.

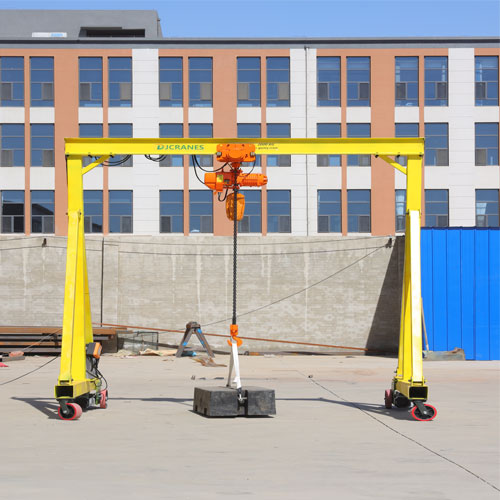

What is a frame gantry crane?

A frame gantry crane belongs to the category of light-duty lifting equipment. It typically features a frame gantry structure, equipped with swivel casters or track-traveling mechanisms, and is often used in conjunction with electric hoists or manual hoists to accomplish lifting, lowering, and horizontal movement of goods. Unlike large fixed cranes, its core characteristics lie in its "simplicity" and "mobility."

Why do you choose a frame gantry crane?

Core advantages of the frame gantry crane:

1. No civil works required – ready for use upon arrival

The frame gantry crane is a complete, self-supporting structure that **does not require pre-installed tracks or load-bearing steel structures in the workshop**. This significantly reduces the initial investment in plant construction or renovation. For older factories without pre-installed crane runways or temporary worksites, this is especially critical – the lifting equipment can be put into operation immediately upon delivery, saving substantial upfront engineering time and costs.

2. Modular design for easy transport and assembly

Unlike large gantry cranes shipped as complete units, frame cranes are typically designed with modular components that can be quickly disassembled into several easy-to-ship parts**. This feature delivers two direct benefits:

Reduced transport costs: Components can be compactly packed into standard containers or small trucks without requiring special transport vehicles, making them particularly suitable for export or cross-regional deployment.

Rapid installation and relocation: On-site assembly can be completed in a short time. Once the job is done, the frame crane can be disassembled again and moved to a new location – one frame crane, multiple uses.

3. Trackless mobility for superior site adaptability

Frame gantry cranes are typically equipped with **swivel casters with brakes, allowing movement on firm, flat concrete floors**. This feature provides excellent maneuverability:

• No fixed tracks are required, enabling flexible allocation between different workstations

• Can be moved as a whole to outdoor areas, seamlessly transitioning between indoor and outdoor operations

• Well-suited for multi-station, multi-shift rotational use

4. Low investment with fast returns

Compared to large bridge cranes or gantry cranes, frame gantry cranes feature simpler structures, lower manufacturing costs, shorter installation cycles, and easier maintenance. The total cost of ownership is significantly advantageous. For projects with limited budgets or urgent production start-up needs, they offer a practical choice that balances performance and economy.

5. Wide applicability across diverse scenarios

Frame gantry cranes are not heavily restricted by site conditions and can be used in a broad range of applications:

In addition, frame gantry cranes can also be used for exhibition setup, ship maintenance, and other scenarios requiring temporary lifting support – truly a versatile "multi-tasker."

Conclusion

With its core strengths of "no civil works, modular assembly, trackless mobility, and cost-effectiveness," the frame gantry crane provides a flexible and reliable solution for light-duty material handling. Whether for routine operations in a fixed workshop or temporary lifting across multiple sites, it handles the job with ease. If you are looking for a lifting solution that requires low investment, delivers quick returns, and adapts to diverse conditions, the frame gantry crane is well worth your consideration.

Note: We offer customized frame gantry crane solutions covering various capacities, spans, and heights. Please contact us for detailed specifications.
