Mobile Gantry Crane of DJCRANES
Mobile Gantry Crane
| Lifting Capacity: | 0.5t to 10t |
| Span: | 3m to 6m |
| Lifting Height: | 2.5m to 6m |
| Working Class: | A3 |
| Ambient Temperature: | -20℃ to 40℃ |
Mobile gantry cranes also known as portable gantry crane, small gantry crane, simple gantry crane, is a kind of mobile light lifting equipment,light gantry crane used in indoor or outdoor places. This machine is equipped with a manual (electric) hoist for lifting and landing, lifting and handling heavy objects.
Portable/Mobile Gantry Crane Technical Data
| Capacity | t | 1 | 2 | 3 | 5 | 10 |
| Span Length | m | 3~6 | 3~6 | 3~6 | 3~6 | 3~6 |
| Lifting Height | m | 2.5~6 | 2.5~6 | 2.5~6 | 2.5~6 | 2.5~6 |
| Lifting Speed | m/min | 0.8/8 | 0.8/8 | 0.8/8 | 0.8/8 | 0.7/7 |
| Trolley Speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 |
| Work Duty | A2~A3 | A2~A3 | A2~A3 | A2~A3 | A2~A3 | |
| Wheel Dia. | mm | ∅150 | ∅150 | ∅150 | ∅150 | ∅200 |
Mobile Gantry Crane Features
Lightweight gantry cranes can be simply split into several easy-to-carry parts and quickly assembled in another location where they are used. This feature is beneficial in many situations.
The portable gantry crane distinguishing feature from other gantry cranes is that it can be used to move freely on ordinary concrete floors using a universal wheel. It is convenient to use in any place where a suspended crane can't use.
■ Prefabricated standard modular design makes expansion and removal easier
■ Easy to install on any flat hardened floor
■ Wide applicability, can be applied in many material handling environments
■ Very affordable for a single unit of work
■ Lightweight installation reduces installation time and costs
■ Increase staff satisfaction
■ Achieve a safe operating environment
■ Optional manual hoist or electric hoist
Mobile Gantry Crane Application
The simple gantry crane has the characteristics of simple structure, convenient operation, large working space, wide application scope, low investment and quick start-up. Mobile gantry crane is applicable to mold manufacturing and installation, auto repair factory, mine, construction site and lifting occasions.
This portable gantry crane especially suitable for workshop equipment installation, handling, debugging, the loading and unloading of goods on the car, lifting large parts of the engine in the auto repair shop, etc.

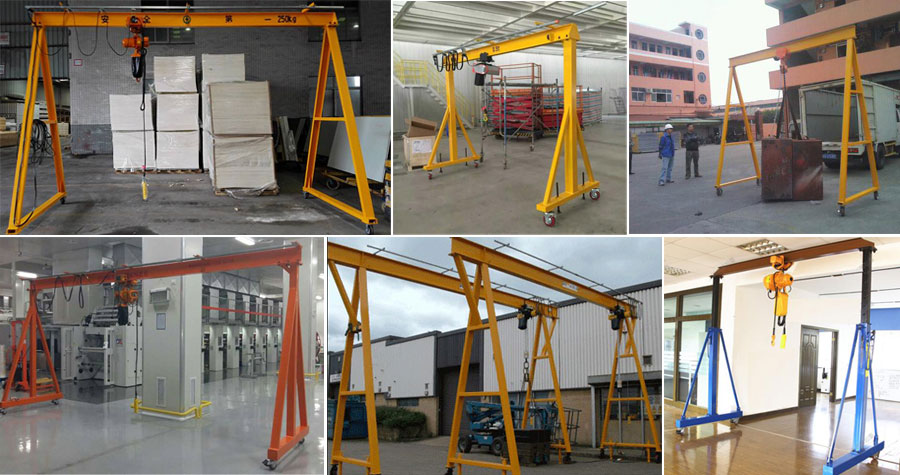

Portable Gantry Crane Types
Mobile(Portable) Gantry Crane Types
