Single Girder Overhead Crane
Current location:Home > Products> Overhead Crane> Single Girder Overhead Crane

LD Series Single Girder Electric Hoist Overhead Crane

LD Single Girder Electric Hoist Overhead Crane

Lifting Capacity:1t-20t
Lifting Height:6m-30m
Span Length:7.5m-28.5m
Working Class:A3, A4
Ambient Temperature:-20℃-40℃

Single Girder Electric Hoist Overhead Crane Introduction

LD series single girder electric hoist overhead crane is also called single beam bridge crane, single girder bridge crane, single girder eot crane,it uses electric hoist as lifting mechanism,used for lifting heavy materials.

Technical data of LD Model Single Girder Overhead Cranes

Technical Parameter of LD Single Girder Overhead Cranes
Lifting heightm6~18
Lifting speedm/min0.8/80.8/80.8/80.8/80.7/70.6/60.42/4.2
Trolley speedm/min20
Crane speedm/min20
Work duty
Track type
P24P24P24P24P24 P38P24 P38P24 P38

Application of LD Single Girder Electric Hoist Overhead Crane

LD series single girder electric hoist overhead crane usually used in plant, warehouse, stock ground, different places to lift goods, such as accessories manufacturing warehouse,tube convey plant, maintenance warehouse etc. It is prohibited to use the equipment in the combustible, explosive or corrosives environment.


Advantages of Single Girder Electric Hoist Overhead Crane

  1.    Light structure, easy installation and maintenance;

  2.    Reasonable structure, strong bearing capacity;

  3.    Low noise, soft starting and stopping;

  4.    Safe and reliable operation;

  5.    Low cost maintenance, long working life;

  6.    Strong box type, welding by machine hand;

  7.    Wheels, wirerope drum, gears, couplings are processed by CNC manchine center, TOP quality control;

  8.    Heavy duty slipring motor, Or Sq. cage motor with VVVF, IP54 or IP44, insulation class F or H, soft starting and smooth running.

Features of Single Girder Electric Hoist Overhead Crane

  1.    Main girder made by the high quality I steel and high quality u-shaped slot into composition,

  2.    End carriages are welded with rectangular tubes.

  3.    Main girder and End carriages assembled with bolts and nuts easily and fast.

  4.    Hoist can be single speed or double speed lifting and traveling.

  5.    Electrics used Schneider brand original from France.

  6.    Motor,reducer,bearings use best brand in China

  7.    Control can be pendant control,wireless remote control and cabin control.

  8.    Safety devices included,such as buffer,limit switch,overload limiter,voltage and current protection equipment etc.

LD single girder crane not suitable for working under the following conditions

■ Environments with explosion and fire hazards

  Places with relative humidity greater than 85% and environments full of corrosive gases

  Lifting molten metal, toxic substances and flammable and explosive substances

For working under the above conditions, please consult us, we will carry out special design and manufacture in accordance with relevant standards and regulations.

The difference between single girder eot crane and double girder bridge crane

■ Differences in working environment

Generally speaking, single-girder bridge cranes are often used in places with short spans, low lifting capacity, and small working spaces. The double-girder bridge crane is used in places with large span, large lifting capacity and large working space. Comparing the two bridges cranes, the working level of the double girder bridge crane is higher.

■ Structural differences

Single-girder eot cranes are lighter in weight, relatively simple in structure, and relatively simple to install, dismantle, and maintain, while double-girder bridge cranes are heavier in weight, more complex in structure, and have higher requirements for assembly, disassembly, and maintenance.

■ The difference in manufacturing cost

Because the fuselage of the single-girder crane is relatively small, the consumables are small, and the manufacturing cost is not high. The double-girder crane has a relatively large fuselage, many consumables, and high technical content, so the construction cost is relatively high.

■ The difference in mechanical properties

The rated lifting capacity of single-girder overhead travelling cranes is small, the working level is relatively low, and the stability is not high, while the rated lifting capacity of double-girder cranes is relatively large, and the working level is higher and the stability is relatively better.

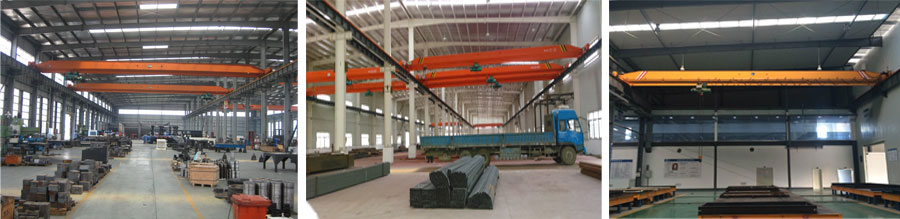

Single Girder Electric Hoist Overhead Crane Application


LD type Single Girder Overhead Crane Application
