QD Series Double Girder Overhead Crane with Winch Trolley

QD Double Girder Overhead Crane with Winch Trolley

Lifting Capacity:	5t to 320t
Span:	10.5m to 31.5m
Lifting Height:	6m to 32m
Working Class:	A5, A6, A7
Ambient Temperature:	-20℃ to 40℃

Inquiry Chat Online

Double Girder Overhead Crane with Winch Trolley introduction

QD series double girder overhead crane with winch trolley is composed of box girder frame, crane travelling device and trolley with lifting and moving device. The trolley with a track on the main beam moves. The moving table is assembled on the outside of the two main beams, one side is ready to assemble and maintain the crane moving device, the other side is ready to assemble the trolley conductor device. The lifting capacity of the hook is 5~600 tons and the operating level is A5 to A7.

Technical Data of the Double Girder Trolley Overhead Cranes

Technical Parameter of QD Double Girder Trolley Overhead Cranes
Capacity	t	5	10	20	32	50
Span	S(m)	10.5~31.5	10.5~31.5	10.5~31.5	10.5~31.5	10.5~31.5
Lifting height	m	6~18	6~18	6~20	6~22	6~32
Lifting speed	m/min	12.5	8.5	7.2	6	6
Work duty		A5~A6	A5~A6	A5~A6	A5~A6	A5~A6
Track type		P43	P43	P43	QU70	QU80

Capacity	t	75	100	160	200	320
Span	S(m)	10.5~31.5	13~31	13~31	13~31	13~31
Lifting height	m	6~32	6~33	6~33	6~33	6~33
Lifting speed	m/min	3.9	3.1	3.7	2.6	2.4
Work duty		A5~A6	A5~A6	A5~A6	A5~A6	A5~A6
Track type		QU100	QU100	QU120	QU120	QU120

Application of Overhead Crane with Winch Trolley

The overhead crane with winch trolley is widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, and power station. It is also can be used as regular double-girder overhead crane in Textile industry or food industry. But it is prohibited to use in inflammable, explosive or erosion environment.

Advantages of Overhead Crane with Winch Trolley

■ Heavy Duty and High Efficient;

■ Suitable for any environment ( High Temperature, Explosion Proof and so on);

■ Long Life Span: 30-50years;

■ Easy for Installation and maintenance;

■ Reasonable structure and strong rigidity;

■ The speed can be frequency inverter speed control;

■ Control method is cabin control or remote control;

■ Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;

Feature of Overhead Crane with Winch Trolley

■ Main girder is made by CNC cutting for complete steel plate, with high surface flatness and accuracy, National standard 24# 38# 43# adapted for cross travel rail;

■ End carriages are welded with rectangular tubes, buffers equipped for safety crane travel;

■ Main girder and End carriages assembled with bolts and nuts easily and fast;

■ Winch trolley consists of motor, brake and reducer, trolley frame, hook, pulley etc.

■ Electrics used Schneider brand original from France;

■ Motor, reducer, brake best brand in China;

■ Working class A5, A6, A7, can be working 24 hours continuously;

■ Control can be pendant control, wireless remote control and cabin control from TELECRANE;

■ Safety devices included, such as buffer, limit switch, overload limiter, voltage and current protection equipment etc.

What are the differences between the QD type and the LH type bridge crane?

QD type double bridge crane and LH type double girder bridge crane are two types of bridge cranes which are widely used in industrial environment. Many customers will be curious about the difference between the two types, why the price of the QD double girder bridge crane is more expensive, and the differences between the two are sorted out as follows:

1. Lifting capacity - The lifting capacity of QD double-girder overhead crane can reach 450 tons, while LH bridge crane usually lifts one ton to dozens of tons, rarely more than 320 tons.

QD overhead cranes are suitable for very heavy lifting applications, while LH overhead cranes are suitable for simpler industrial environments with lower lifting requirements.

2. Hoisting Mechanism - QD double overhead crane adopts winch trolley hoisting mechanism, which can provide precise and efficient lifting and lowering, while LH double girder overhead crane adopts hoist trolley mechanism, which has lower control precision.

3. Operating environment - QD bridge cranes are able to withstand harsh industrial environments that expose equipment to factors such as dust, high temperature and humidity.

LH double bridge cranes are suitable for most industrial environments, but not suitable for some extremely harsh environmental conditions.

QD double girder bridge cranes are generally more expensive than LH double girder bridge cranes due to their advanced design and lifting capacity;

LH double-girder bridge cranes are more cost-effective, but may not be able to meet some special heavy-duty lifting operation environments.

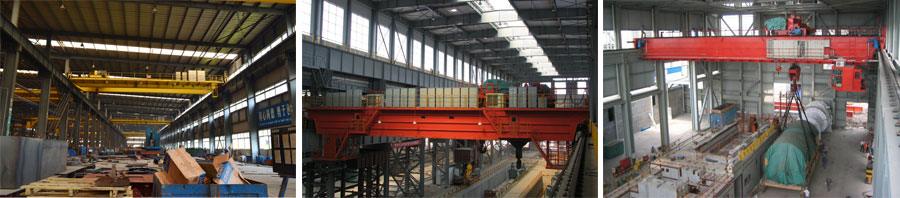

Overhead Crane with Winch Trolley's Case

Double Girder Overhead Crane with Winch Trolley
