1 ton Electric Chain Hoist with electric trolley for Australia customer. As we all know, Australia has strict standard about crane and hoist. But reliability and compact design make chain hoist ideal for numerous applications in the construction industry, service companies and many industrial areas for moving small and medium loads. That’s why Australia customers prefer electric chain hoists made in China.
1 Ton Electric Chain Hoist with Electric Trolley Specification
Lifting Capacity: 1 Ton
Lifting Height: 6m
1 Ton Electric Chain Hoist Production and Packaging
After one week production, the 1 ton electric chain hoist finished.
The electric chain hoist can be fixed and used, which is very convenient for lifting heavy objects, loading and unloading work, maintenance equipment and lifting goods. Electric chain hoist can be installed on single beam I-beam rail, double beam I-beam rail, column cantilever crane, wall-mounted cantilever crane, curved I-beam steel rail and fixed lifting points.

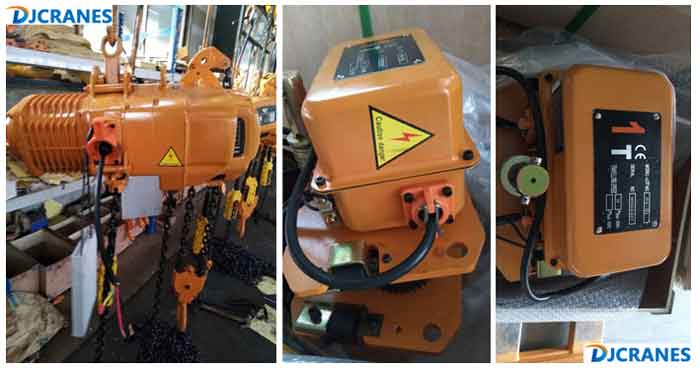

1 Ton Electric Chain Hoist

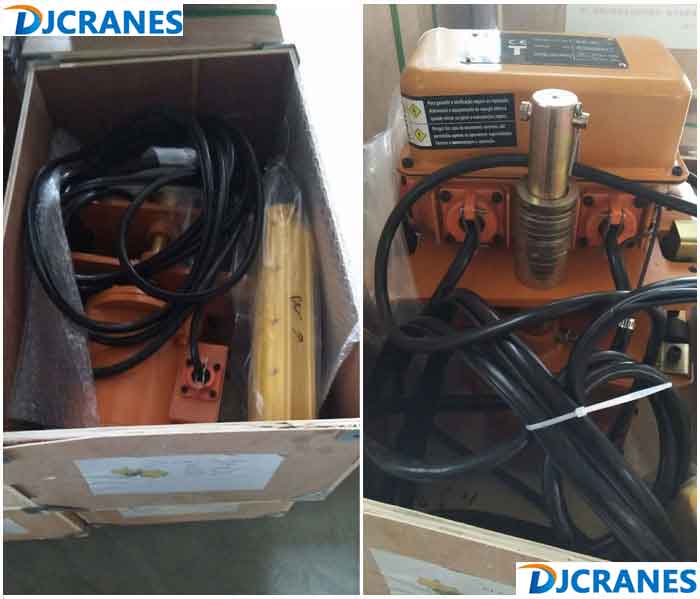

1 Ton Electric Chain Hoist Packaging
Electric Chain Hoist Maintenance Method
Electric Chain Hoist Maintenance
1. For electric chain hoists that are newly installed, the empty hoist trial operation should be performed several times first. But before the installation is complete, do not try to turn on the power.
2. The electric chain hoist should be subjected to a static load test at 125% of the rated load and lifting about 100 mm from the ground for 10 minutes before normal use and check whether it is normal.
3. Dynamic load test is based on rated load weight, repeated lifting and left-right movement test. After the test, check whether the mechanical transmission part, electrical part and connection part are normal and reliable.
4. In use, it is absolutely forbidden to use in the environment that is not allowed, and exceed the rated load and the rated closing times per hour (120 times).
5. During installation, debugging and maintenance, it is necessary to strictly check whether the limit device is flexible and reliable. When the hook is raised to the upper limit position, the distance between the hook housing and the drum housing must be greater than 50mm (10t, 16t, 20t must be greater than 120mm). When the hook is lowered to the lower limit position, the chain safety ring on the drum should be guaranteed. The effective safety ring must be more than 2 turns.
6. It is not allowed to press two flashlight button buttons that move the electric chain hoist in opposite directions at the same time.
7. After the work is completed, should cut off the power supply.
8. The electric chain hoist should be operated by professionals. The operator should fully grasp the safety operation regulations.
9. The electric chain hoist must be checked regularly by specialized personnel, and measures should be taken in time to find faults, and carefully recorded in use.
10. When adjusting the braking slip of the electric chain hoist, ensure that the braking slip S ≤ V / 100 under the rated load (V is the stable lifting distance within the next minute of the load).
Get Customized Electric Chain Hoist Price
When you are ready to request a quote for a electric chain hoist, please help to confirm the following items:
■ Lifting capacity: _____tons;
■ Lifting height: _____meters;
■ Voltage and power supply: ___V ____Hz __ Phase(single phase or 3-phase hoist; 50HZ or 60HZ);
■ The suspension:______ (hook, manual geared trolley, motorized trolley);
■ The working class:_____;
■ Hoist speed: _____m/min;
■ Trolley speed:_____m/min;
■ Beam size:__________;
■ The application, what materials to be lifted: _____________.
Dejun Crane can provide customers different ton,different types and different voltage electric chain hoist according to customers’ needs. If you have need about 1 ton electric chain hoist or other ton electric chain hoist, please don’t hesitate to Contact Us.
