2t 5t high quality and competitive price of column jib crane

Column jib crane is fixed on the ground with high strength bolts, the arm can rotate 360 degrees, can match the chain hoist and wire rope hoist. If you are concerns to need the column jib crane, contact us to design the suitable column jib crane to fully meet your need.

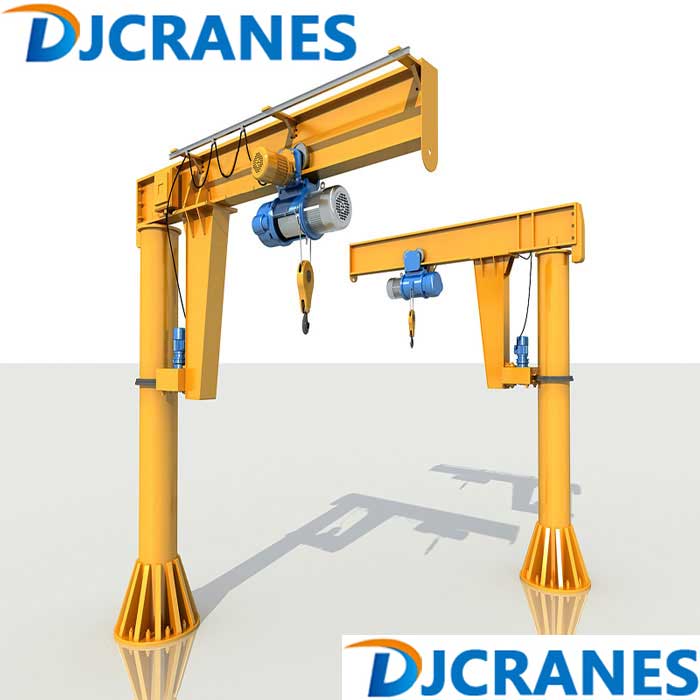

Column jib crane with wire rope hoist

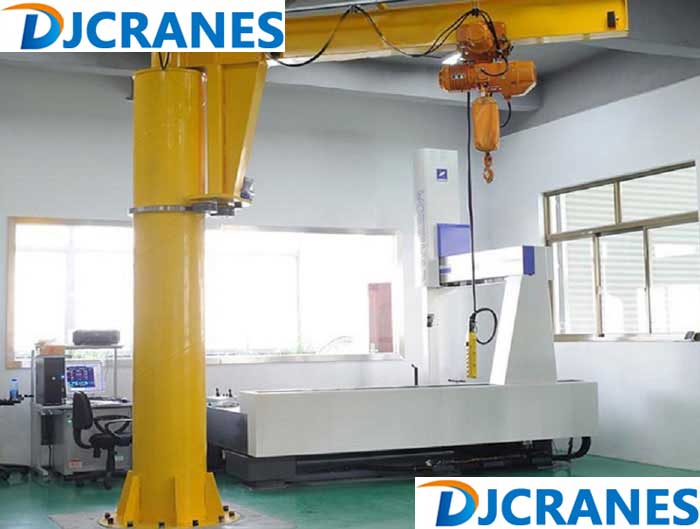

Column jib crane with chain hoist

Why choose the column jib crane?

1) The column jib crane has high reliability and a great advantage in the production of short distance, even if people frequently operate it is not easy to occur damage phenomenon.

2) The column jib crane brings great convenience to people, improves working efficiency and reduces working pressure.

3) The column jib crane is also more flexible and convenient in use, easy to maintain, because of its structural performance advantages, less floor space, space saving.

Drawing and technical date


Drawing of column jib crane

type


BZ0.5

BZ1

BZ2

BZ3

BZ5

BZ8

BZ10

......

Slew Angle

360°

Lifting speed(m/min)

Normal

5/10/8

8

8

8

8

8

8

......

slow

1.25/2.5

0.8

0.8

0.8

0.8

0.8

0.8

......

Traveling speed(m/min)


20

20

20

20

20

20

20

......

Slewing speed(r/min)


0.7

0.7

0.7

0.6

0.6

0.6

0.6

......

Electric hoist

Wire rope hoist or chain hoist

Power supply

3 Phase/220v 380v 440v 415v / 50hz ,60hz

Control

Pendent with cable or remote control

How to select the suitable column jib crane to meet your need

1) capacity: The lifting capacity of column jib crane is bigger than the weight of the  goods to be lifted

2) Rotation : The arm can be rotated electrically or manually by 360 degrees.The rotation method can be selected according to the working environment. If there is explosive gas in the air, manual rotation is recommended.

3) Hoist : Wire rope and chain hoist both can use on column jib crane. The wire rope hoist adapts to a variety of working environments. The chain hoist itself is small in size and has a longer running length than the wire rope hoist on the arm. Choose the right hoist according to your actual working conditions.

4) Lifting height : The lifting height is the distance from the center of the hook to the ground.

5) Control: Usually use pendent control or remote control.It can control the hoist's lifting, down, traveling and arm rotation.There is an emergency stop button on it. You can choose pendent with cable control or remote control by your need.

6) Power source:Generally, the factory voltage is industrial voltage, so please provide 3 phase industrial voltage.

7) Working environment:For damp or corrosive working environment, the column jib crane needs customized to achieve the effect of anti-rust and anti-corrosion.

8) Motor: If the working environment is humid or explosive gas, please inform in advance, we will customized the motor according  the working environment.

Notes for installation

1) When installing the column jib crane, it must be confirmed that the column is installed vertically, and the vertical should be checked from different directions. The ground must be flat and free of debris. If the ground is smooth, a suitable layer of cloth must be added to increase the friction with the ground.

2)The stability of the installation must be ensured, and the quality must be guaranteed. The installation cannot be started when the concrete strength is unstable for the construction period, because the load-bearing capacity of the column jib crane may exceed the limit of the ground stress. Unfortunate accidents such as collapse and overturning caused the concrete to be unstable.

3)In order to ensure the safe operation of the column jib crane, in order to ensure that the column jib crane can meet the operating requirements of various loads after being put into use, the crane must be subjected to static load and dynamic load tests of no-load, full load, and overload according to the regulations.


jib Installation site

In addition to column jib crane, Dejun company also have other types of jib cranes, such as wall jib crane, wall traveling jib crane.If you have any inquiry, please do not hesitate to contact us, we can design a column jib crane that fully meets your needs according to your working environment and working conditions.
