Electric Trolley Electric Wire Rope Hoist Installation Process

The electric wire rope hoist with electric trolley as a lifting device can be installed on electric single beams, manual single beams, bridge cranes , suspension overhead cranes, cantilever cranes, gantry frames with I-beams as tracks.

The installation process of the electric wire rope hoist with electric trolley needs to be carried out step by step. Before hoist installation, you should be familiar with the installation environment, construction drawings, construction safety notes, and technical details to ensure that the work can be carried out safely and orderly.

Electric Trolley Electric Wire Rope Hoist Inspection before Installation

Electric wire rope hoist with electric trolley is installed at high altitude, so safety facilities must be prepared before installation. It is necessary to check whether the equipment materials conform to the specifications, check whether the components of the electric wire rope hoist are complete, and record the inspection results, carefully study the installation drawings, and understand every installation detail.

Electric-Wire-Rope-Hoist-with-Electric-Trolley-Installation

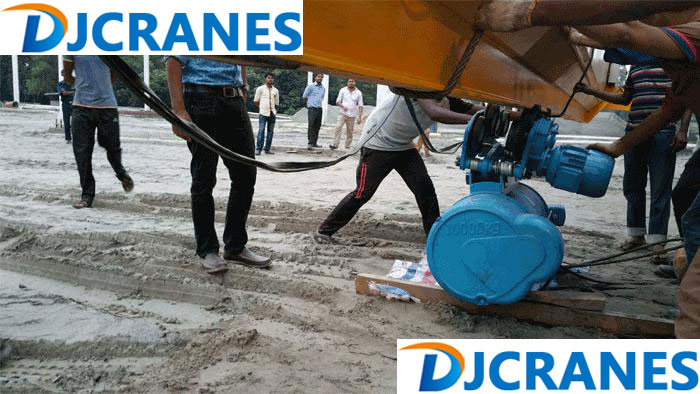

Electric Wire Rope Hoist with Electric Trolley Installation

Electric Wire Rope Hoist with Electric Trolley Installation

(1) When installing the track, manually distribute the track under the beam, and then use a truck crane to hang the split and single beam of the electric hoist to the appropriate position.

(2) After paving the track, it is also necessary to make and install the hoist stalls. The hoist stalls on the rails must be installed before the hoisting crane. The contact surfaces of the car stalls and the electric hoist buffer must be prevented from being on the same plane.

(3) When lifting, there must be at least two lifting points, and the binding points of the lifting points should be selected at both ends of the bridge.

(4) Lift the electric trolley, attach it next to the trolley track and fix it, lift the electric hoist to a suitable height, and install and fix the electric hoist according to the bolt number.

Electric Trolley Electric Wire Rope Hoist Installation Adjustment

After the installation is complete, adjust the gap between the electric hoist wheel and the track so that the distance between the two is about 3 to 5 mm. This is a very important step, which will directly affect the performance of the electric hoist.

Electric-Trolley-Electric-Wire-Rope-Hoist-Installation-Adjustment

Electric Trolley Electric Wire Rope Hoist Installation Adjustment

Electric Wire Rope Hoist with Electric Trolley Test

After the adjustment of the equipment is completed, the electric trolley electric wire rope hoist is tested for no load, dynamic and static load to ensure the normal operation of the electric wire rope hoist.

There is no problem with the above steps, then the electric wire rope hoist with electric trolley can be delivered for use.

CD/MD Electric Trolley Electric Wire Rope Hoist Components

The components of the CD1 wire rope electric hoist can be roughly divided into: reducer, control box, wire rope, cone motor, button switch.

 Electric-Trolley-Electric-Wire-Rope-Hoist

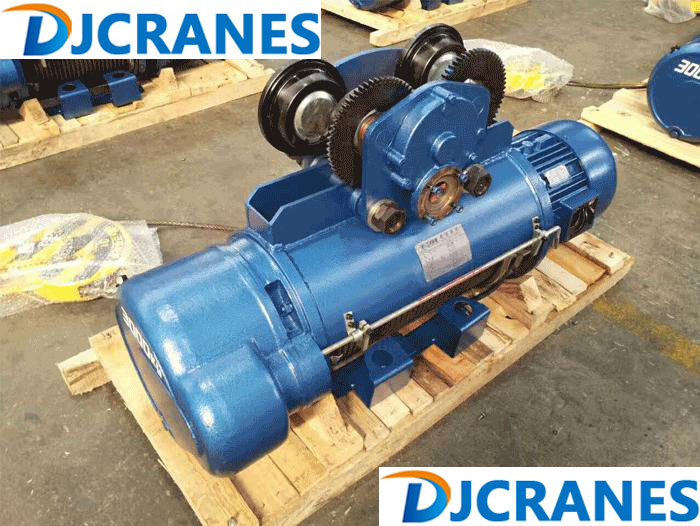

CD/MD Electric Trolley Electric Wire Rope Hoist

The functions of each institution are as follows:

Reducer: It adopts a three-stage fixed-shaft helical gear transmission mechanism. The gear and gear shaft are made of heat-treated alloy steel. The box body and box cover are made of high-quality cast iron. The assembly is tight and the seal is good.

Control box: It is a device that can cut off the main circuit in an emergency and is equipped with an up and down stroke protection fire stop.

Steel wire rope: It is a type of lifting steel wire rope, which ensures durability.

Conical motor: The hoisting motor adopts a larger dynamic torque conical rotor to brake the asynchronous motor without the need for an additional brake.

Button switch: hand-operated, light and handy, divided into two modes: corded operation and cordless remote control.

The tonnage of wire rope electric hoist is 0.5T/1T/2T/3T/5T/10T/16T/20T tons, and its standard wire rope meter is 6M/9M/12M/18M/24M/30M meters. It is also divided into CD1 (single speed type) and MD1 (double speed type).

After learning the electric wire rope hoist components, structure and installation process, we can familiar with this CD/MD type electric wire rope hoist with electric trolley more. Any need about CD/MD electric wire rope hoist, please Contact Us freely.
