BMH(G) Type Semi Gantry Crane

BMH Semi Single Girder Gantry Crane

Lifting Capacity:1t to 16t
Span:5m to 20m
Light Height:6m to 12m
Working Class:A3, A4
Ambient Temperature:-20℃ to 40℃

BMH(G) Model Semi Gantry Crane Introduction

BMH series semi single girder gantry crane is widely used with electric hoist. It is a kind of track travelling mid-duty type gantry crane, the one beam end traveling on wall mounted track, another beam end traveling on ground track.

BMH semi gantry crane has ground control or remote control system. With special ground beam gear box can extend its work area.

BMG semi gantry crane is combining the advantages of the full gantry crane and overhead crane. It is widely applied to do loading and unloading work in indoor or outdoor.

Technical data of BMH(G) Hoist Semi Gantry Crane

Technical Parameter of BMH Hoist Semi Gantry Crane

Capacityt2351016
SpanS(m)5~205~205~205~205~20
Lifting heightm6~126~126~126~126~12
Lifting speedm/min0.8/80.8/80.8/80.7/70.6/6
Trolley speedm/min20/3020/3020/3020/3020/30
Crane speedm/min20/3020/3020/3020/3020/30
Work duty
A3~A4A3~A4A3~A4A3~A4A3~A4
Track type
P24P24P24 P38P38P38

BMH Semi Single Girder Gantry Crane Technical Parameter

Technical Parameter of BMG Double Girder Semi Gantry Crane

Capacityt510162032
SpanS(m)18~3518~3518~3518~3518~35
Lifting heightm6~126~126~126~126~12
Lifting speedm/min12.58.57.97.27.5
Trolley speedm/min37.243.844.642.442.4
Crane speedm/min37.737.740.140.138
Work duty
A4~A5A4~A5A4~A5A4~A5A4~A5
Track type
P38P38 P43P43 QU70P43 QU70P50 QU80

BMG Semi Double Girder Gantry Crane Technical Parameter

BMH(G) Model Semi Gantry Crane Application

BMH(G) type semi gantry crane is widely used in open warehouse,mechanical processing workshop, outdoor place for loads lifting and transporting.

BMH(G) Semi Gantry Crane Structure

Semi gantry crane is based on gantry crane. It consists of sugarcane span structure, lifting and cross travelling mechanism, long travelling mechanism and electrical control system. Only one side of the crane keeps landing legs on the ground track. On the other side there are wheels running on the wall of the workshop. The rest of the BMH(G) semi gantry crane structure and configuration are consistent with the MH(G) electric hoist gantry crane. Compared with normal gantry crane,this is a good choice to save investment and space.

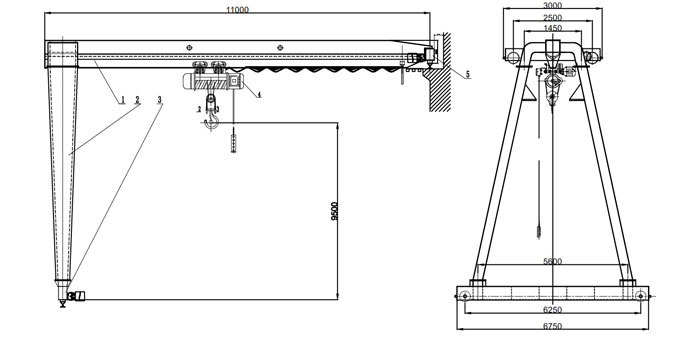

BMH Semi Gantry Crane Drawing

Features of BMH(G) Electric Hoist Semi Gantry Crane

■   Semi gantry supporting legs, one side traveling on the factory supporting beam.

■   Smooth starting and stopping,Overload protection.

■   Convenient maintenance, Electricity saving.

■   Excellent exchange ability for parts and components.

■   Protective earthing.Main lifting motor with thermal protection.

■   Emergency switch can stop all movement when any dangerous happened.

■   Sub-assemblies characteristic are tested before assembly.

■   All cranes must be preassembled and tested before leaving factory and offer the certification of test.

Attentions

■   The semi-gantry crane should be locked in time when the working point is shut down.

■   No electric wire is above the total switch of the crane.

■   Prohibit the use of hazardous environments such as flammable, explosive, dusts and corrosive, etc.

■   Overloading is highly forbidden.

BMH(G) Electric Hoist Semi Gantry Crane Case

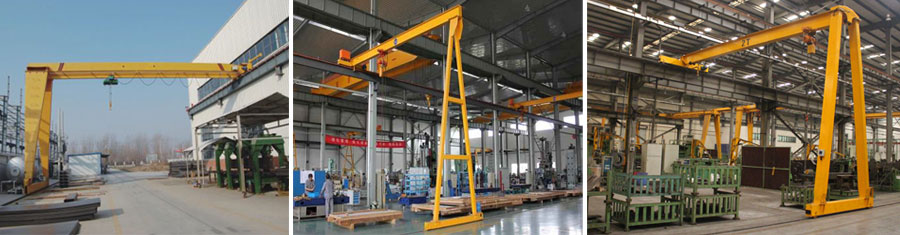

BMH Electric Hoist Semi Gantry Crane Case

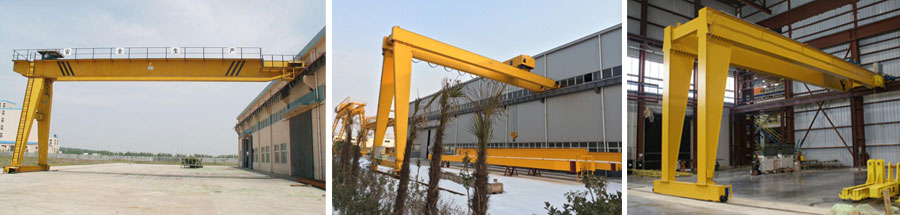

BMG Semi Double Girder Gantry Crane Case
