Mining Winch: Electric Power Winch|Hydraulic Type Winch

Electric Winch

ModelJTK, JTP, JKB, JTPBJZM, JZ
Loading Capacity:0.5t to 80t
Rope Capacity:20m to 5000m
Working Speed:1.3~5.2m/min
Work Way:Friction; Electric

Mining winch usually place in coal mine and different metal mines (copper mine, silver mine, iron mine, zinc mine). Mining winch set in and out mine to carry and drag minerals. According to the power system of mine winch, we have electric power winch and hydraulic type winch. And for the function of mine winch, we have four types of mine winches to let you make a choice.

Mine Hoist Winch

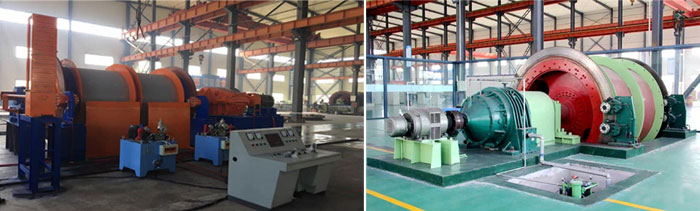

Mine hoist winch is mainly used in coal, metal and non-metallic mineral in inclined drift or small vertical shaft to lift materials. Without explosion environment. And the mine hoist winch also has high advanced PLC control system, high speed and high lifting capacity.


Mine Hoist Winch

Mine Hoist Winch Main Parameters

ModelTYPETensile
force of
wire rope
Wire
rope
Overall dimensionThe
whole
weight
No.DiameterWidthLifting
man
Lifting
material
Max.diameterBreaking
force
SpeedLegnthWidthHeight
PcsmmKNmmKNm/smkg
JTK-0.8×0.61800600/151497.51.33×2.2×1.32100
JTK-1.0×0.61000800151297.51.73.4×2.1×1.53300
JTP-1.2×11120010001521141372/2.55x5x2.759562
JTP-1.2×1.212001.5/1.95.2x5x2.759585
2JTP-1.2×0.8212008001521141372.5/3.06.1x5x2.7511700
2JTP-1.2×1.010001.5/1.96.1x5x2.7511900
JTP-1.6×1.21160012003142202792/2.56.4×5.4×2.913538
JTP-1.6×1.515001.5/1.96.7×5.4×2.914128
2JTP-1.6×0.9216009003142202793.0/4.07.1×5.4×2.916760
2JTP-1.6×1.212002/2.57.4×5.4×2.917370
JK-2×1.5120001500446024396.54.0/5.08.15×6.86×2.7524955
JK-2×1.818002.5/3.28.4×6.86×2.7525396
2JK-2×1220001000446124396.54.0/7.09.48×6.97×2.7528955
2JK-2×1.2512502.5/3.29.73×6.97×2.7530355
JK-2.5×21250020006990306213.8/4.810.26×9.12×3.0535200
JK-2.5×2.323003.0/3.410.56×9.12×3.0536040
2JK-2.5×1.22250012006983306218.7/4.911.56×9.12×3.0546325
2JK-2.5×1.515002.5/4.011.86×9.12×3.4547752
JK-3×2.2125002200100130369004.6/5.912.4×10.8×2.8552540
JK-3×2.525003.0/4.1
JK-3.5×2.51350025001361704212305.4/6.714.18×10.65×3.9573940
JK-3.5×2.83.5/4.8
2JK-3×1.5230001500100135369005.9/10.014.1×10.8×3.4558750
2JK-3×1.818003.0/4.714.7×10.8×3.4560250
2JK-3.5×1.72350017001361704212306.7/12.015.9×10.65×3.9577830
2JK-3.5×2.121003.5/5.316.7×10.65×3.9579630

Explosion Proof Mine Winch

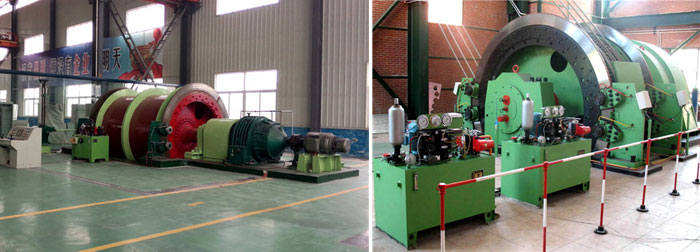

Explosion proof mine hoist winch is mainly used in coal, metal and non-metallic mineral in vertical shaft or inclined shaft to lift or lower coal, material, person and equipment, etc. This kind of mine hoist winch has high safety standard with the feature of explosion-proof. And the mine hoist winch also has high advanced PLC control system.


Explosion Proof Mine Winch

Explosion Proof Mine Winch Main Parameters

ModelDrumTensile
force of
wire rope
Wire
rope
Overall dimensionThe
whole
weight
No.DiameterWidthLifting
man
Lifting
material
Max.diameterBreaking
force
SpeedLegnthWidthHeight
PcsmmKNmmKNm/smmkg
JKB-2.0×1.5P1200015006262325585.26980×3550×249029810
JKB-2.0×1.8P2000180062325585.27280×3550×249030620
2JKB-2.0×1.0P2200010006240325587.07350×3550×249033540
2JKB-2.0×1.25P12507.07850×3550×249034590
JTPB-1.6×1.2P1160012004545264054.05910×3100×210019930
JTPB-1.6×1.5P1600150045264054.06210×3100×210020370
2JTPB-1.6×0.9P216009004530264054.06500×3100×210024420
2JTPB-1.6×1.2P12004.07100×3100×210025620

Friction Shaft Sinking Winch

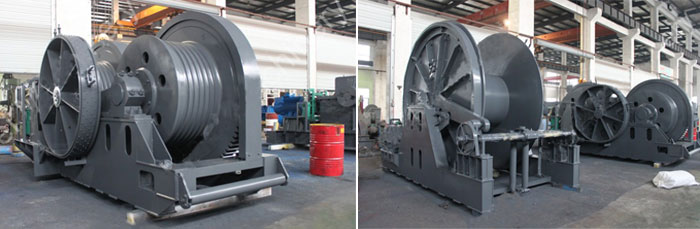

Friction shaft sinking winch is mainly used for coal, metal ore and non-metallic mineral suspension Vertical Shaft excavation, water mercury, water pipes, templates, cables and other excavation equipment, can replace construction winch for construction and ground handling, etc., as lifting. This kind of winch with double drums with slow speed for stable operation.


Friction Shaft Sinking Winch

Friction Shaft Sinking Winch Main Parameters

Technical Parameter of  Friction Shaft Sinking Winches
ModelSteel wire ropeSteel
rope
speed
(m/min)
Steel
rope
capacity
Motor
power
Overall
Dimensions
Weight
(not
include
motor
and
control
part)
Power
supply
Work
type
NumberPulling
load
(KN)
Diameter
(mm)
fastslowmTypekwmmkg3 phase (v)
JZM-25/800Friction1250520.10.05800YZR280M-8556368x3102x229019652380
2JZM-25/800Friction225052
0.05800YZR280M-6756368x5612x229037000380
2JZM-25/1350Friction225052
0.051350YZR280M-6756730x5612x247038200380
JZM-40/1350Friction140060.50.10.051350YZR315S-8757660x3790x285037000380

Shaft Sinking Winch

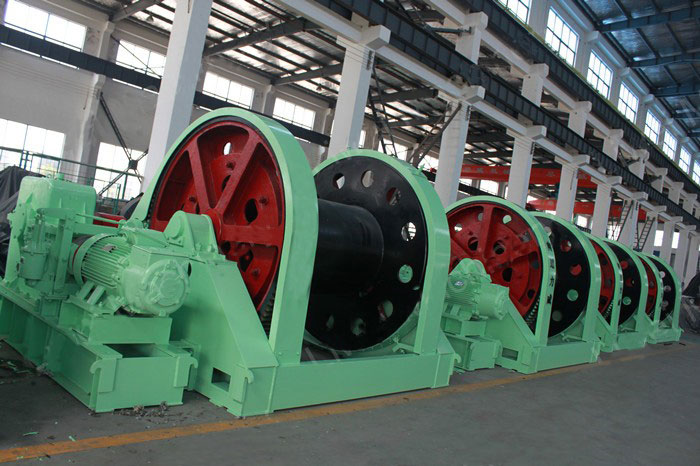

Shaft sinking winches are mainly used for coal, metal ore and non-metallic mineral suspension Vertical Shaft excavation, water mercury, water pipes, templates, cables and other excavation equipment, can replace construction winch for construction and ground handling, etc. as lifting. This kind of winch with single drum with slow speed for stable operation and big load from 10 ton-65 ton.


Shaft Sinking Winch Main Parameters

Technical Parameter of JZ Series  Shaft Sinking Winches
ModelSteel
rope
max
static
tensity
Rope
capacity
Steel
rope
speed
Steel
rope
diameter
Motor
power
Overall
Dimensions
Overall
weight
Power
supply
KNmFastslowmmkwmmkg3 phase (v)
JZ-10/8001008000.0750.03832223283x2570x17707000380
JZ-16/8001608000.0750.03840373358x3200x224011480380
JZ-16/100016010000.0750.03840373650x3200x224012680380
JZ-16/132016013200.0750.03840373900x3200x224013500380
JZ-16/160016016000.0750.03840453827x3623x250014400380
JZ-25/132025013200.0750.03852454062x3623x250016035380
JZ-25/160025016000.0750.03852454625x4242x316617100380
JZ40/180040018000.0750.03860753920x3200x224027000380
2JZ-5/4002×502×4000.0750.03832373115x2579x13006000380
2JZ-5/4002×1002×6000.0750.03832374400x3400x174011250380
2JZ-5/4002×1002×8000.0750.03832374300x3440x174013560380
2JZ-5/4002×1602×8000.0750.03842555473x3440x224020840380
2JZ-5/4002×1602×10000.0750.03842555473x3690x224021072380
2JZ-5/4002×1602×13200.0750.03842555473x3675x224022712380
2JZ-5/4002×2502×13200.0750.03852756310x3840x250029700380
